ΜΙΚΡΟΕΚΤΟΞΕΥΤΗΡΑΣ 831

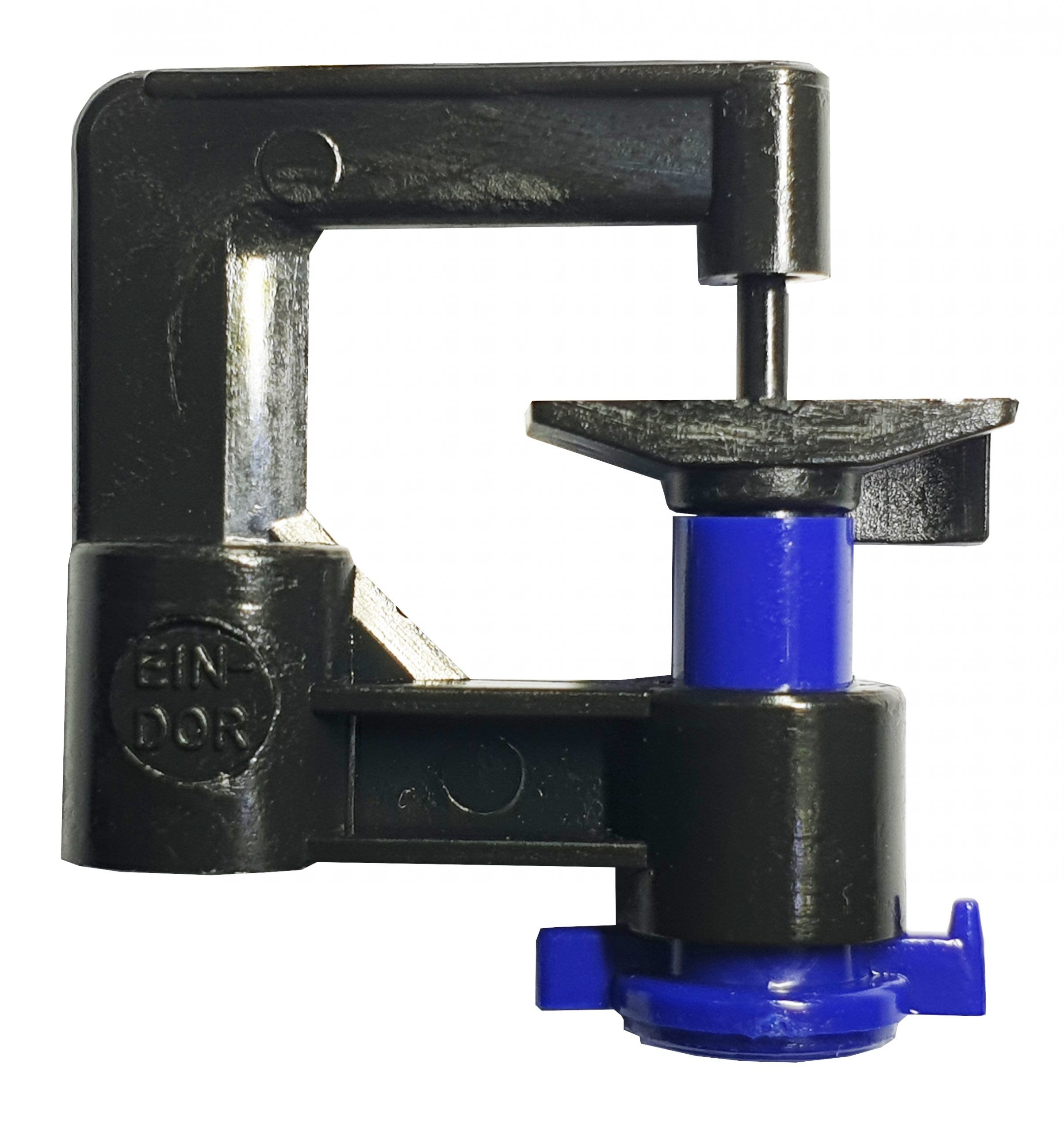

Model 831-Insect Protected, Large Wetting Diameter

Applications:

• The product is designed for irrigation of mature trees
with large root zone.
• Due to the high uniformity and large diameter, the
emitter can be installed between two tress.
• Product can be used for low precipitation rate and high
uniformity overlapping irrigation in greenhouses, flower
beds and vegetables.
• Can be used for frost protection and cooling systems.
• Applicable for Parks and home gardens.
Technical Specifcations:
• Wide range of nozzles to meet all applications
16-240 liters per hour (0.07-1.06 gpm).
• Nominal Flow rate at 2.0 bar (29 psi).
• Optimal operating pressure range:
1.0-2.5 bar (14.5-36.0 psi).
• Insect Protected – nozzle shuts off after operation.
• Single jet swivel. Strong propulsion which increases
whenever disturbed by any obstacle-Operates smoothly
even in harsh conditions.
• Large wetting diameter: 5.5-10.4 m (18-33 Ft).
• Recommended overlapping spacing in wind protected areas
upright position:
Rectangular spacing up to 6X6 m (20X20 Ft).
One row of emitters up to 6.0 m (20 Ft) hot house width.
Two rows of emitters up to 12 m (39 Ft) hot house width.
• 831 series can be supplied as PC (pressure
compensated) emitter.
• Energy&Water saving – Series 831 can operate at
low pressure of 1bar (14.5 psi) and flow rates as low as
16lph (0.07 gpm). Please consult TAVLIT.
Energy and
water saving
